We have installed paper processing unit of 1500 MT per year to manufacture various kind of crepe papers for Packaging, Germination, Electrical industries. We have capability to manufacture crepe having stretch from 20% to 120%.

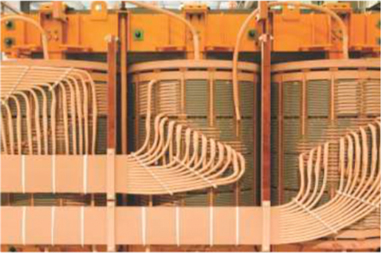

Electrical Insultation Grade Confirming
IEC 60554 -3-3 & IS 9335 Part 3/ Section 2 1984
Packaging Grade
Electrical Insultation Grade Confirming
IEC 60554 -3-3 & IS 9335 Part 3/ Section 2 1984
Packaging Grade
Name of Test | Value As per | Obtain Value | |||
IEC 60554-3-3 | |||||
2 mil | 3 mil | 4 mil | 5 mil | ||
Substance g/m2 | 82 | 125 | 165 | 220 | |
Hill Count per 10mm | 8.00 - 20.00 | 14 | 12 | 12 | 10 |
Tensile Index, Nm/g - M.D. | 39 | 72 | 74 | 75 | 74 |
Elongation at Break % - M.D. | - | 105 | 107 | 110 | 109 |
Moisture Content % | 6.00 - 8.00 | 6.30 | 7.01 | 7.50 | 7.50 |
pH of Aqueous Extract | 6.00 - 8.00 | 7.20 | 7.40 | 7.10 | 7.50 |
Conductivity of Aqueous Extract, ms/m | Max 10.00 | 3.50 | 3.10 | 4.30 | 4.60 |
Ash Content | Max 1.00 | 0.29 | 0.33 | 0.30 | 0.35 |
Type of Paper | Basis Mass (g/m2) |
Bursting Strength (kg/cm2) min. |
Capillary Rise (in mm) min. |
pH | Ash % by mass max. |
Germination Paper | 130-135 | 1.0 | 30 | 6.0 to 7.5 | 1.00 |
Jumbo / Slitted material will be wrapped with crepe paper and finally with stretch film and labelled with necessary details. We supply core ID with 38 mm and 75mm
Jumbo Rolls
25 to 100 kgs rolls will be wrapped with crepe paper and finally stretch film and labelled
Slitted Rolls
Weighing upto 30 kgs will be wrapped with strech film & packed in corrugated boxes & labelled with necessary details.
Raajratna Ventures Limited is part of Raajratna group of companies having sales of 1000 Cr. Raajratna group is established in year 1990 engaged into manufacturing various products like stainless steel wire, stainless steel bars, stainless steel fasteners, stainless steel pipes, welding consumables, solar module and aluminium profiles.
